BRASS CABLE GLANDS |
| |
|
| |

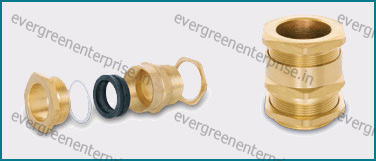

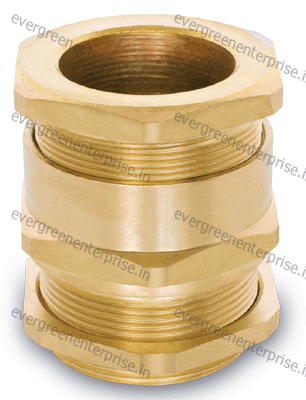

A2, A1/A2 Cable Gland :
Nickle plated or natural brass A2 type cable glands are used with variety of unarmored or rubber sheathed cables. We do take care of the a2 type cable gland in our production unit of their fine delivery of endurance
| Standard : |
BS 6121 PART-1 |
| Application : |
Outdoor or indoor, for use with unarmored plastic or rubber sheated cable |
| Option : |
All type of accessories available like Earth Tag, PVC Shroud, Neoprine Rubber & LSF Rubber, PVC Washer, Brass Lock Nut |
| Size : |
16 TO 90 (S & L) |
| Finish : |
Natural Brass, Nickel Plated |
|
A2 Gland Size |
Mounting Thread |
Cable Dimensions |
Across Corner Diameter |
|
Dia mm |
Length mm |
A (min) |
A (max) |
|
A2 16 |
16 |
10 |
5.0 |
9.0 |
21.9 |
A2 20S |
20 |
10 |
9.0 |
12.0 |
25.0 |
A2 20 |
20 |
10 |
11.0 |
14.0 |
27.5 |
A2 25S |
25 |
10 |
13.5 |
17.0 |
33.3 |
A2 25 |
25 |
10 |
16.5 |
20.2 |
36.7 |
A2 32S |
32 |
10 |
20.0 |
24.0 |
45.0 |
A2 32 |
32 |
10 |
24.0 |
27.0 |
45.0 |
A2 40S |
40 |
15 |
26.0 |
30.0 |
50.0 |
A2 40 |
40 |
15 |
29.0 |
33.0 |
53.0 |
A2 50S |
50 |
15 |
33.0 |
38.0 |
64.0 |
A2 50 |
50 |
15 |
38.0 |
44.0 |
68.0 |
A2 63S |
63 |
15 |
44.0 |
50.0 |
81.0 |
A2 63 |
63 |
15 |
50.0 |
56.0 |
.0 |
A2 75S |
75 |
15 |
56.0 |
62.0 |
.0 |
A2 75 |
75 |
15 |
62.0 |
68.0 |
100.0 |
A2 88/90 |
88/90 |
15 |
68.0 |
78.0 |
115.0 |

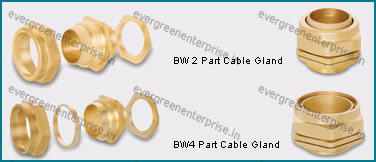

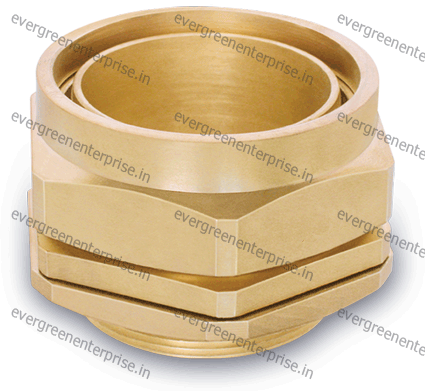

Cable Gland - BW Type :
The BW Cable Gland is quite handy in use with various types of cable whether plastic, rubberized, metal or any other. The BW cable glands come with superfine finishing for its looks and sturdity of dependable reliability of the cable gland.
| Standard : |
BS 6121 PART-1 |
| Application : |
Dry indoor, for use with all type of swa cables, plastic or rubber sheated cable |
| Option : |
All type of accessories available like Earth Tag, PVC Shroud, Brass Lock Nut |
| Size : |
16 TO 110 (S & L) |
| Finish : |
Natural Brass, Nickel Plated |
|
BW Gland Size |
Mounting Thread |
Cable Dimensions |
Armour Wire Diameter |
Across Corner Diameter |
|
Dia mm |
Length mm |
A (max) |
B (max) |
|
|
16/20 |
16/20 |
10 |
8.7 |
13.2 |
0.90 |
25.0 |
20s |
20 |
10 |
11.6 |
16.8 |
0.90 - 1.25 |
28.5 |
20 |
20 |
10 |
13.9 |
20.8 |
0.90 - 1.25 |
34.5 |
25s |
25 |
10 |
17.3 |
24.0 |
1.25 - 1.60 |
36.0 |
25 |
25 |
10 |
19.9 |
27.0 |
1.25 - 1.60 |
40.0 |
32 |
32 |
10 |
26.3 |
33.0 |
1.60 - 2.00 |
48.5 |
40s |
40 |
15 |
30.2 |
37.8 |
1.60 - 2.00 |
56.0 |
40 |
40 |
15 |
32.2 |
41.0 |
1.60 - 2.00 |
58.5 |
50s |
50 |
15 |
39.8 |
47.0 |
2.00 - 2.50 |
68.0 |
50 |
50 |
15 |
44.0 |
52.2 |
2.00 - 2.50 |
72.5 |
63s |
63 |
15 |
50.0 |
60.3 |
2.00 - 2.50 |
82.0 |
63 |
63 |
15 |
55.8 |
66.0 |
2.00 - 2.50 |
88.0 |
75s |
75 |
15 |
62.2 |
72.0 |
2.50 - 3.20 |
98.0 |
75 |
75 |
15 |
67.8 |
78.0 |
2.50 - 3.20 |
107.5 |
88/90 |
88/90 |
15 |
80.0 |
90.0 |
2.50 - 3.20 |
124.0 |

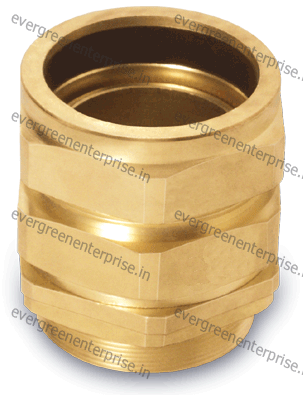

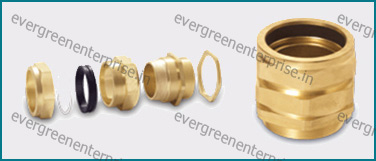

CW 3 Part Cable Gland :
Our motto has been variety and precision of manufacturing various dimensional CW type cable glands. They too come in stunning high quality material for use in outdoor or indoor application with various types of cables sheathed or unsheathed
| Standard : |
BS 6121 PART-1 |
| Application : |
Outdoor or indoor, for use with all type of swa cables, plastic or rubber sheated cable |
| Option : |
All type of accessories available like Earth Tag, PVC Shroud, Neoprine Rubber & LSF Rubber, PVC Washer, Brass Lock Nut |
| Size : |
16 TO 110 (S & L) |
| Finish : |
Natural Brass, Nickel Plated |
|
CW Gland Size |
Mounting Thread |
Cable Dimensions |
Armour Wire Diameter |
Across Corner Diameter |
|
Dia mm |
Length mm |
A (max) |
B (max) |
|
|
16/20 |
16/20 |
10 |
8.7 |
13.2 |
0.90 |
25.0 |
20s |
20 |
10 |
11.6 |
16.8 |
0.90 - 1.25 |
28.5 |
20 |
20 |
10 |
13.9 |
20.8 |
0.90 - 1.25 |
34.5 |
25s |
25 |
10 |
17.3 |
24.0 |
1.25 - 1.60 |
36.0 |
25 |
25 |
10 |
19.9 |
27.0 |
1.25 - 1.60 |
40.0 |
32 |
32 |
10 |
26.3 |
33.0 |
1.60 - 2.00 |
48.5 |
40s |
40 |
15 |
30.2 |
37.8 |
1.60 - 2.00 |
56.0 |
40 |
40 |
15 |
32.2 |
41.0 |
1.60 - 2.00 |
58.5 |
50s |
50 |
15 |
39.8 |
47.0 |
2.00 - 2.50 |
68.0 |
50 |
50 |
15 |
44.0 |
52.2 |
2.00 - 2.50 |
72.5 |
63s |
63 |
15 |
50.0 |
60.3 |
2.00 - 2.50 |
82.0 |
63 |
63 |
15 |
55.8 |
66.0 |
2.00 - 2.50 |
88.0 |
75s |
75 |
15 |
62.2 |
72.0 |
2.50 - 3.20 |
98.0 |
75 |
75 |
15 |
67.8 |
78.0 |
2.50 - 3.20 |
107.5 |
88/90 |
88/90 |
15 |
80.0 |
90.0 |
2.50 - 3.20 |
124.0 |

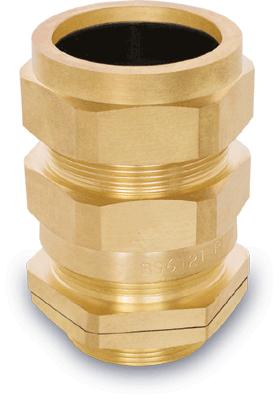

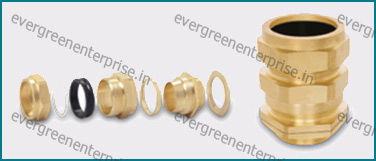

CW 4 Part Cable Gland :
Our motto has been variety and precision of manufacturing various dimensional CW type cable glands. They too come in stunning high quality material for use in outdoor or indoor application with various types of cables sheathed or unsheathed
| Standard : |
BS 6121 PART-1 |
| Application : |
Outdoor or indoor, for use with all type of swa cables, plastic or rubber sheated cable |
| Option : |
All type of accessories available like Earth Tag, PVC Shroud, Neoprine Rubber & LSF Rubber, PVC Washer, Brass Lock Nut |
| Size : |
16 TO 110 (S & L) |
| Finish : |
Natural Brass, Nickel Plated |
|

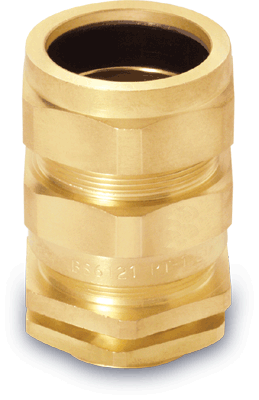

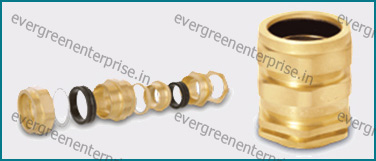

E1W Cable Gland :
This all weather gland effects IP66 seals between the cable outer sheath and the gland nut and between the cable inner sheath and the gland body.
| Standard : |
BS 6121 PART-1 |
| Application : |
Outdoor or indoor, for use with all type of swa cables, plastic or rubber sheated cable |
| Option : |
All type of accessories available like Earth Tag, PVC Shroud, Neoprine Rubber & LSF Rubber, PVC Washer, Brass Lock Nut |
| Size : |
16 TO 110 (S & L) |
| Finish : |
Natural Brass, Nickel Plated |
|
E1W Gland Size |
Mounting Thread |
Cable Dimensions |
Armour Wire Diameter |
Across Corner Diameter |
|
Dia mm |
Length mm |
A (min) |
A (max) |
B (min) |
B (max) |
|
|
16/20 |
16/20 |
10 |
4.5 |
8.7 |
8.4 |
13.5 |
0.9 |
25.0 |
20s |
20 |
10 |
8.0 |
11.6 |
12.9 |
16.8 |
0.90-1.25 |
28.5 |
20 |
20 |
10 |
10.9 |
13.9 |
15.8 |
20.8 |
0.90-1.25 |
34.5 |
25s |
25 |
10 |
13.3 |
17.3 |
20.0 |
24.0 |
1.25-1.60 |
36.0 |
25 |
25 |
10 |
16.5 |
19.9 |
21.0 |
27.0 |
1.25-1.60 |
40.0 |
32 |
32 |
10 |
19.3 |
26.3 |
26.7 |
33.0 |
1.60-2.00 |
48.5 |
40s |
40 |
15 |
24.2 |
30.2 |
32.8 |
37.8 |
1.60-2.00 |
56.0 |
40 |
40 |
15 |
26.0 |
32.2 |
35.5 |
41.0 |
1.60-2.00 |
58.5 |
50s |
50 |
15 |
32.8 |
39.8 |
41.5 |
.8 |
2.00-2.50 |
68.0 |
50 |
50 |
15 |
36.5 |
44.0 |
.7 |
52.2 |
2.00-2.50 |
72.5 |
63s |
63 |
15 |
42.5 |
50.0 |
52.1 |
60.3 |
2.00-2.50 |
82.0 |
63 |
63 |
15 |
48.5 |
55.8 |
59.0 |
66.0 |
2.00-2.50 |
88.0 |
75s |
75 |
15 |
54.5 |
62.2 |
65.2 |
72.0 |
2.50-3.20 |
98.0 |
75 |
75 |
15 |
60.5 |
.8 |
71.8 |
78.0 |
2.50-3.20 |
107.5 |
88/90 |
88/90 |
15 |
68.0 |
80.0 |
78.2 |
90.0 |
2.50-3.20 |
124.0 |

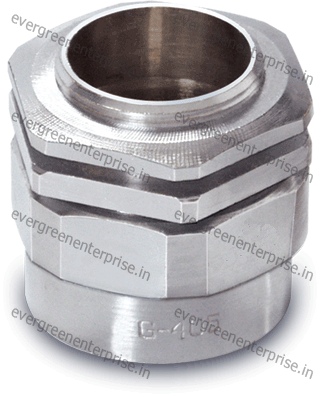

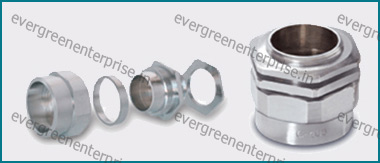

Alco Cable Gland :
| Application : |
Used with SWA, plastic and rubber sheathed cables.
Used indoor conditions inner ring frames positive armour clamp an earth continuity.
Material is brass and nickel plated. |
| Size : |
G 204 TO G 755 |
|

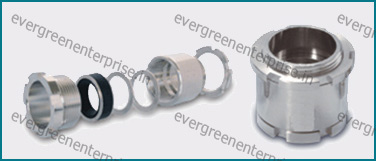

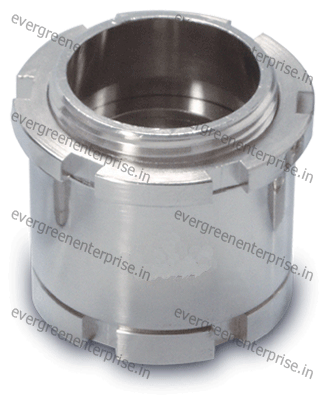

Marine Cable Gland :
| Application : |
Used for various marine applications. |
| Size : |
10 mm to 70 mm |
|
TRS Cable Gland :
| Application : |
While not manufactured to a specific standard, are accepted by many contractors and uses as satisfactory method of securing flexible cables. |
| Size : |
16 mm to 90 mm |
|

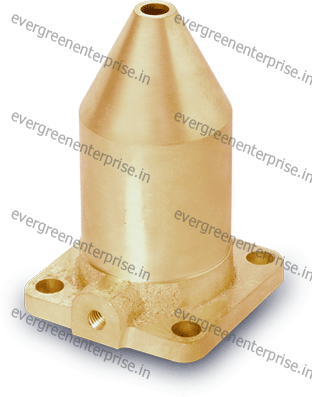

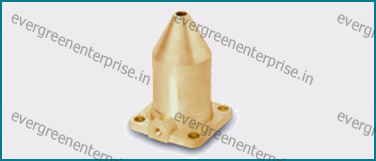

Wiping Gland :
As per drawings and specifications.
|
|
|
|
